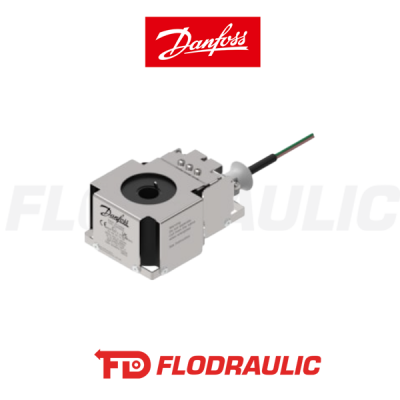

018Z8593 - SOLENOID COIL BI110C, CABLE - DANFOSS

Original Danfoss BI110C solenoid coil with integrated cable, ATEX/IECEx certified for Zone 1 potentially explosive environments. AC 110V / 50-60Hz supply, IP67 enclosure rating. OEM replacement for Danfoss EVR, AKV, ICF series solenoid valves and compatible units.

Price available only for registered users

Why choose an original Danfoss BI110C coil?

  • ATEX 2014/34/EU and IECEx certified — approved for Zone 1, Group IIC, Temperature Class T4
  • IP67 protection — dust-tight and resistant to temporary water immersion
  • Encapsulated coil for extended service life under extreme conditions
  • Continuous duty rating for demanding industrial applications
  • Class 200 (UL) winding insulation — superior thermal resistance
  • Compatible with R290, R600, R600a and R1270 refrigerants

Key technical data:

  • Code No.: 018Z8593
  • Type: BI110C
  • Supply voltage: AC 110V
  • Frequency: 50/60 Hz
  • Power consumption: 10W
  • Connection: Fixed PVC cable 3x0.75mm² — Ø 6.6mm
  • Enclosure rating: IP67 (IP54 Ex certification)
  • Ambient temperature: -40°C / +40°C
  • Media temperature: -40°C / +90°C
  • Certifications: ATEX · IECEx · RoHS 2011/65/EU

Compatibility: Danfoss EVR 2–40, EVRA, AKV, AKVA, ICF 25–65 solenoid valves and compatible series
