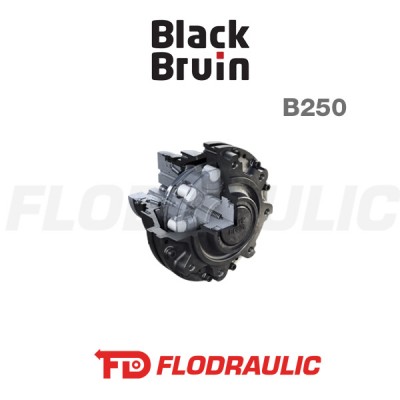

B250-0160-2N0R-MRJ50 - B250 MOTOR - BLACK BRUIN

Model Code Description

  • Frame: B250
  • Displacement: 1600 ccm/rev
  • Displacement Control: 2-speed valve, Right side - CCW preferred
  • Accessory: Drum brake 400x80 - 100
Quantity Unit discount You Save
2 20% €5,374.75
4 44% €23,648.90

Price available only for registered users

Rotating Direction
flow direction A to B
Flow direction B to A
CW
CCW
Displacement
at full displacement
at half displacement
1600 ccm
800 ccm
Brake Torque 13500 Nm
Max. Operating Power
at full displacement
at half displacement
50 kW
30 kW
Max. Rotating Speed
at full displacement
at half displacement
at freewheeling
125 rpm
185 rpm
500 rpm
Max. Engaging speed (out of freewheeling) 63 rpm
Min. Rotating Speed (constant running) 2 rpm
Max. Working Pressure
peak pressure
intermittent ¹⁾
350 bar
300 bar
Max. Case Pressure
average
intermittent ¹⁾
2 bar
10 bar
Pilot Pressure for Internal Valve
valve engaged
valve released
7 - 30 bar
0 - 2 bar
Max. Flow Rate
at full displacement
at half displacement
200 l/min
150 l/min
Fluid Viscosity
recommended
minimum
25 - 50 cSt
15 cSt
Operating Temperature
recommended
maximum
< 70° C
85° C
Weight 156 kg
Max. Load Capacity 5,4 t
Tightening Torque
hub interface
drum brake interface
540 Nm  M20x1,5  10.9
330 Nm  M16x2,0  12.9
B250NNM00183
