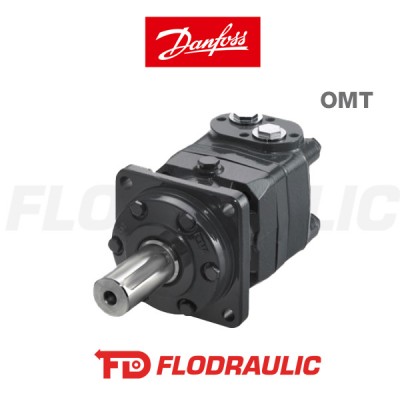

151B3025 - ORBITAL MOTOR OMT 200 - DANFOSS
151B3025
- Mounting Flange
- Wheel - PD 160mm; BC 200 mm
- Shaft Style
- Cylindrical
- Shaft Key
- A12 x 8 x 70 mm (DIN 6885)
- Port Style
- Side port
- Port Dimension
- G 3/4
- Drain Port Style
- Standard
- Drain Port Dimension
- G 1/4
- Painted
- none
- Geometric Displacement
- 201,4 [12.29]
- Max Inlet Pressure Cont
- 210 [3050]
- Max Inlet Pressure Int
- 250 [3630]
- Max Inlet Pressure Peak
- 300 [4350]
- Seal Kit
- 151B0113
