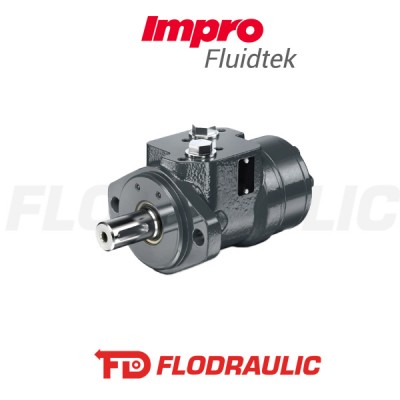

11200470 - MOTOR ORBITAL WP155315A6312BAAAAP - IMPRO FLUIDTEK
The WP motor series is an economical alternative to a more complex roller gear set design and still provides high efficiency across a wide performance range. These motors are intended for light-duty applications requiring high torque in a compact package and are suitable for industrial and mobile applications including car wash brushes, food processing equipment, conveyors, machine tools, agricultural equipment, sweepers, skid steer attachments, and more.
| roduct Code | Displacement [cm³/rev] | Max. Speed [RPM] | Max. Flow [l/min] | Max. Torque [Nm] | Max. Pressure [bar] | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| cont. | inter. | cont. | inter. | cont. | inter. | cont. | inter. | peak | ||
| WP 025 | 25.0 | 1570 | 1687 | 40 | 45 | 35 | 48 | 100 | 140 | 225 |
| WP 032 | 32.0 | 1550 | 1674 | 50 | 55 | 45 | 57 | 100 | 140 | 225 |
| WP 040 | 40.0 | 1471 | 1670 | 60 | 70 | 65 | 74 | 100 | 140 | 225 |
| WP 050 | 50.0 | 1208 | 1500 | 60 | 75 | 91 | 108 | 140 | 175 | 240 |
| WP 060 | 59.0 | 1185 | 1271 | 60 | 75 | 125 | 136 | 160 | 175 | 240 |
| WP 080 | 78.0 | 896 | 960 | 60 | 75 | 164 | 183 | 160 | 175 | 240 |
| WP 100 | 96.0 | 728 | 780 | 60 | 75 | 195 | 213 | 160 | 175 | 240 |
| WP 125 | 125.0 | 559 | 599 | 60 | 75 | 258 | 278 | 160 | 175 | 240 |
| WP 160 | 159.0 | 452 | 483 | 60 | 75 | 321 | 362 | 160 | 175 | 240 |
| WP 200 | 190.0 | 367 | 385 | 60 | 75 | 380 | 420 | 150 | 175 | 240 |
| WP 250 | 240.0 | 291 | 312 | 60 | 75 | 445 | 557 | 140 | 175 | 240 |
| WP 315 | 303.0 | 228 | 245 | 60 | 75 | 460 | 602 | 120 | 160 | 200 |
| WP 400 | 388.0 | 155 | 189 | 60 | 75 | 488 | 625 | 95 | 125 | 180 |
11200470
