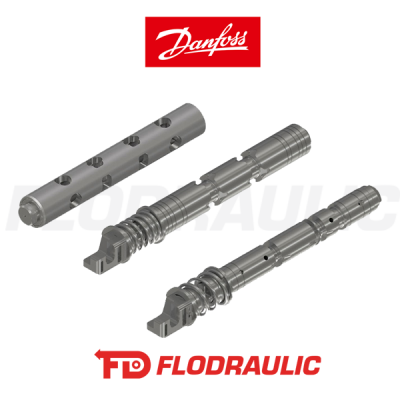

157B9750 - PVBS32 SPOOL - DANFOSS
Model code: SVSSPOL0B10101010FF0F0FBB5LL4X00LLTP111000CS0
|
Characteristic
|
Value
|
Description
|
|---|---|---|
| Spool Interface | 0B |
PVB32
|
| A->T Flow Rate | 10 |
10
|
| P-> A Flow Rate | 10 |
10
|
| P-> B Flow Rate | 10 |
10
|
| B->T Flow Rate | 10 |
10
|
| A->T Control Type | F |
Flow
|
| P->A Control Type | F |
Flow
|
| Pressure Control P->A | 0 |
N/A
|
| P->B Control Type | F |
Flow
|
| Pressure Control P->B | 0 |
N/A
|
| B->T Control Type | F |
Flow
|
| A->T Function in Neutral | B |
Blocked (Closed)
|
| B->T Function in Neutral | B |
Blocked (Closed)
|
| Spool Deadband | 5 |
1.5
|
| Spool Characteristic A | L |
Linear
|
| Spool Characteristic B | L |
Linear
|
| Pilot Pressure Neutral | 4 |
4.0 bar
|
| Pilot Pressure Full Stroke | X |
5.5 bar
|
| Nominal Diameter | S |
Standard
|
| Minimum Float Position | 0 |
N/A
|
| Float Direction | 0 |
N/A
|
| Nominel Max Position A | L |
7.2
|
| Nominel Max Position B | L |
7.2
|
| Spool Option A | T |
Tensionbar
|
| Spool Option B | P |
Plug
|
| Product Category | 1 |
Standard Part
|
| Primer | 0 |
N/A
|
| Marking | 0 |
N/A
|
| Ex Application | 0 |
N/A
|
| Certification | CS |
ISO13849 Compliant
|
| Spool Data | 0 |
N/A
|
| Marking | 0 |
N/A
|
| Product type |
N/A
|
|
| Spool Deadband |
1.5
|
157B9750
