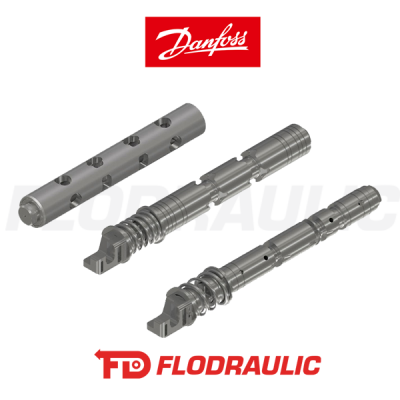

161B7127 - CURSORE PVBS PROGRESSIVO 180 LT C.A. STANDARD MOUNT - DANFOSS
161B7127 - CURSORE PVBS PROGRESSIVO 180 LT C.A. STANDARD MOUNT - DANFOSS
PVG 100
Model code: SVSSPOL0VA8A8A8A8FF0F0FDD5PPZ50077TP551000CS0
|
Characteristic
|
Value
|
Description
|
|---|---|---|
| Spool Interface | 0V |
PVBZ100
|
| A->T Flow Rate | A8 |
180
|
| P-> A Flow Rate | A8 |
180
|
| P-> B Flow Rate | A8 |
180
|
| B->T Flow Rate | A8 |
180
|
| A->T Control Type | F |
Flow
|
| P->A Control Type | F |
Flow
|
| Pressure Control P->A | 0 |
N/A
|
| P->B Control Type | F |
Flow
|
| Pressure Control P->B | 0 |
N/A
|
| B->T Control Type | F |
Flow
|
| A->T Function in Neutral | D |
Drained (Throttle Open)
|
| B->T Function in Neutral | D |
Drained (Throttle Open)
|
| Spool Deadband | 5 |
1.5
|
| Spool Characteristic A | P |
Progressive
|
| Spool Characteristic B | P |
Progressive
|
| Pilot Pressure Neutral | Z |
3.5 bar
|
| Pilot Pressure Full Stroke | 5 |
5.0 bar
|
| Nominal Diameter | S |
Standard
|
| Minimum Float Position | 0 |
N/A
|
| Float Direction | 0 |
N/A
|
| Nominel Max Position A | 7 |
7
|
| Nominel Max Position B | 7 |
7
|
| Spool Option A | T |
Tensionbar
|
| Spool Option B | P |
Plug
|
| Product Category | 1 |
Standard Part
|
| Primer | 0 |
N/A
|
| Marking | 0 |
N/A
|
| Ex Application | 0 |
N/A
|
| Certification | CS |
ISO13849 Compliant
|
| Spool Data | 0 |
N/A
|
| Marking | 0 |
N/A
|
| Product Type |
N/A
|
|
| Spool Deadband |
1.5
|
161B7127
