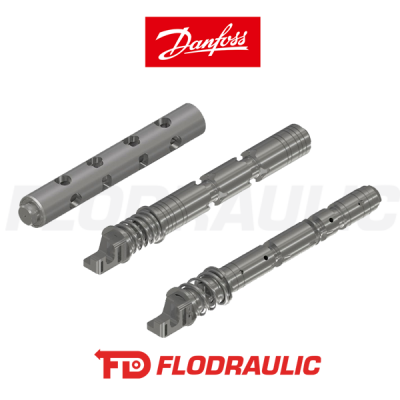

11266923 - CURSORE PVBS 10 LT C.C. FLOT PVG16 NUOVO DESIGN - DANFOSS
11266923 - CURSORE PVBS 10 LT C.C. FLOT PVG16 NUOVO DESIGN - DANFOSS
PVG 16
Model code: SVSSPOL0A10101010FF0F0FBB5PL3X6B55TP881000CS0
|
Characteristic
|
Value
|
Description
|
|---|---|---|
| A->T Control Type | F |
Flow
|
| A->T Flow Rate | 10 |
10
|
| A->T Function in Neutral | B |
Blocked (Closed)
|
| B->T Control Type | F |
Flow
|
| B->T Flow Rate | 10 |
10
|
| B->T Function in Neutral | B |
Blocked (Closed)
|
| Certification | CS |
ISO13849 Compliant
|
| Ex Application | 0 |
N/A
|
| Float Direction | B |
B Port
|
| Marking | 0 |
N/A
|
| Marking | 0 |
N/A
|
| Minimum Float Position | 6 |
6
|
| Nominal Diameter | S |
Standard
|
| Nominel Max Position A | 5 |
5
|
| Nominel Max Position B | 5 |
5
|
| P-> A Flow Rate | 10 |
10
|
| P-> B Flow Rate | 10 |
10
|
| P->A Control Type | F |
Flow
|
| P->B Control Type | F |
Flow
|
| Pilot Pressure Full Stroke | X |
5.5 bar
|
| Pilot Pressure Neutral | 3 |
3.0 bar
|
| Pressure Control P->A | 0 |
N/A
|
| Pressure Control P->B | 0 |
N/A
|
| Primer | 0 |
N/A
|
| Product Category | 1 |
Standard Part
|
| Product Type |
N/A
|
|
| Spool Characteristic A | P |
Progressive
|
| Spool Characteristic B | L |
Linear
|
| Spool Data | 0 |
N/A
|
| Spool Deadband | 5 |
1.5
|
| Spool Deadband |
1.5
|
|
| Spool Interface | 0A |
PVB16
|
| Spool Option A | T |
Tensionbar
|
| Spool Option B | P |
Plug
|
11266923
