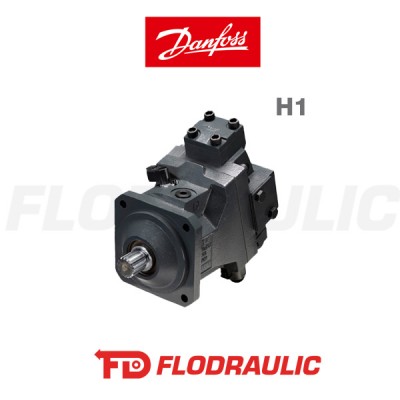

83096769 - AXIAL PISTON MOTOR WITH VARIABLE DISPLACEMENT H1B080 - DANFOSS

Model code: H1-B-080-A-A-T2-DA-N-B-TB-DN-HN-N-N-NN-NN-054-Z-30-NNN

Characteristic	Value	Description
Series	H1	H1 - Series
Product type	B	Bent-axis variable motor
Frame Size	080	Displacement 80 cc/rev at maximum angle
Revision	A	Product version A of H1B series
Configuration of ports	A	Port configuration: inch according to ISO 11926-1
Control	T2	Electric 2 position 24V, Deutsch DT 04-2P connector, de-energized = minimum displacement, with pressure compensator override
Pressure compensator override and brake pressure defeat	DA	With pressure compensator override and without brake pressure defeat, use with “P” and “T” controls
Threshold setting	N	Not applicable
Orifices	B	0.8mm diameter orifices M4 and M5
Endcap type and ports	TB	Endcap for 2 position and pressure compensator controls, side ports ISO 6162 Type 1 (metric), use with “E”, “F”, “T”, “P” and“H*” controls
Flange and housing	DN	DIN-flange motor housing (ISO 3019 / 2), no speed sensor port
Shaft and speed ring	HN	W35x2x30x16x9g DIN 5480, no speed ring
Sensor	N	No speed sensor
Loop flushing shuttle system	N	No loop flushing function
Loop flushing relief valve	NN	No loop flushing function
Special hardware features	NN	Standard hardware feature 2 position standard
Minimum displacement	054	054 cc/rev minimum displacement setting
Maximum displacement	Z	100% maximum displacement, non adjustable, use with "E", "F", "T","P" & "H*"
Pressure compensator override setting	30	Pressure compensator override pressure setting 300 bar
Paint and nametag	NNN	Danfoss nametag
