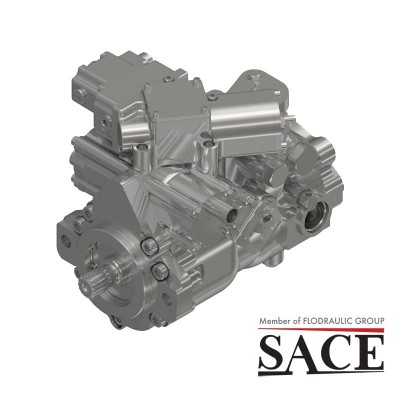

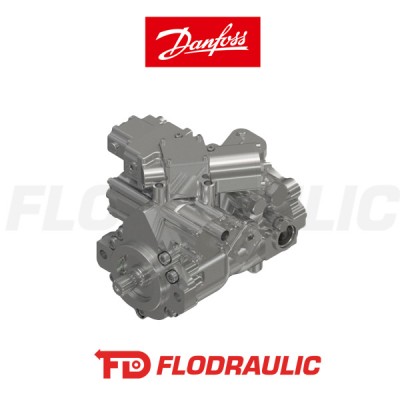

M46-20393 - Piston Pump - MPV046C-BBH-SBB-AAGA-BFF-CDAZGA-NNN
These pumps can be combined with other products in a system to transfer and control hydraulic power. All models use the parallel axial piston / slipper concept in conjunction with a tiltable swashplate to vary the pump’s displacement. M46 pumps offer proportional controls with either manual, hydraulic, or electronic actuation.
Orders received by September 30, 2026, with delivery from December 1, 2026 onward: theprice list will be subject to a +2.5% adjustment. *orbital motors are excluded
M46-20393
- Frame Size
- 046 46CC(2.80 CI)
- Input Shaft / Aux
- H SFT-PV, 15T/9T FOR A FLG
- Rotation (& Valveplate)
- S Rotation CW, CP15 13 QT
- Charge Pump
- B 13.99cc/REV (0.85CIR) CHG Pump
- Charge Pressure
- B 19.5 BAR CPRV Setting (280 PSI)
- Filtration
- AA FLTR Suction
- Bypass Valve
- A Bypass Valve (NO ORF)
- System Pressure Protection
- BFF SYS Press Protect 250 BAR (3625 PSI)
- Control
- CD Cont-EDC, 1 COIL, OIL FLD, MS
- Auxiliary Mounting
- A AUX Flange SAE A
- Special Hardware
- NNN SHF-M46PV, NONE
