111.20.A42.00 - GR2 GEAR PUMP SNC2NN/017RN06SAC1NNNNNNNN/NNNNN - DANFOSS

Key features:

• Fixed displacement gear pump from the Danfoss GearMe Aluminum Group 2 range

• SNC2NN configuration with inlet and outlet connections integrated in the cover

• 017 displacement configuration rated at 16.8 cc/rev

• Clockwise rotation

• SAE A mounting flange with Ø 82.55 mm pilot and 2-bolt mounting

• SAE J498 splined shaft, 9 teeth, 16/32 DP

• C1 cover with 3/4 Gas BSP inlet and 1/2 Gas BSP outlet connections

• Standard NBR seals

• Standard burnished screws

• Standard Danfoss marking in top position

• Configuration without integrated valve

Key technical data:

• Code No.: 111.20.A42.00

• Official model code: SNC2NN-/-017-R-N-06-SA-C1-NN-NN-NN-N-N-/-NNN-N-N

• Type: Fixed displacement gear pump

• Family: Danfoss GearMe SNC2NN Group 2

• Displacement: 16.8 cc/rev

• Rotation: Clockwise

• Mounting flange: 06 — SAE A, Ø 82.55 mm pilot, 2-bolt mounting

• Drive shaft: SA — SAE J498 splined, 9T, 16/32 DP

• Rear cover: C1 — BSP connections in the cover

• Inlet connection: 3/4 Gas BSP

• Outlet connection: 1/2 Gas BSP

• Body ports: NN — without body ports, connections provided in the cover

• Seals: N — standard NBR seals

• Screws: N — standard burnished screws

• Integrated valve: None, NNN configuration

• Marking: Standard Danfoss marking, top position

Typical applications:

Hydraulic circuits for mobile machinery, agricultural equipment, construction machines, material handling systems and hydraulic power units for industrial applications.

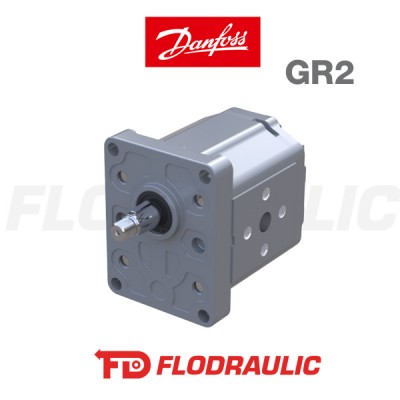

*Image is for illustrative purposes only
