157B5110 - PVP OC MODULE PVG 32 FOR FIXED DISPLACEMENT PUMPS - DANFOSS

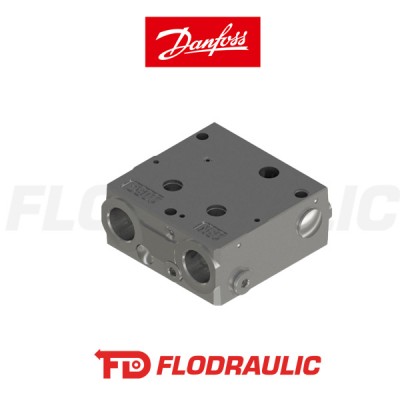

Danfoss PVP Open Center pump side module for PVG 32 proportional valve groups, dedicated to fixed displacement pumps. Integrated pilot oil supply for electrically actuated valves. P and T ports 3/4'' BSP, weight 3.1 kg. Pressure relief valve kit available as accessory (155L6495).

Price available only for registered users

Why choose the Danfoss PVP OC module for PVG 32?

  • Open Center — pump flow circulates freely to tank at neutral, ideal for fixed displacement pumps
  • Integrated pilot oil supply — provides correct pilot pressure for PVE electrical actuation of work sections
  • Standard 3/4'' BSP connections — easy installation compatible with the most common piping systems
  • Compatible with PVB 32 work sections — direct integration into the PVG 32 valve group
  • Pressure relief valve kit available separately (155L6495) — integrable circuit protection
  • Compatible with PVG 16 and PVG 32

Key technical data:

  • Code No.: 157B5110
  • Type: PVP Open Center — fixed displacement pumps
  • Port P: 3/4'' BSP
  • Port T: 3/4'' BSP
  • Pilot supply: Integrated for PVE electrical actuation
  • Weight: 3.1 kg
  • Compatibility: PVG 16 / PVG 32

Typical applications: Agricultural machinery, construction vehicles, lifting systems and any mobile machine with PVG 32 proportional valve groups and fixed displacement pump

157B5110
Danfoss
