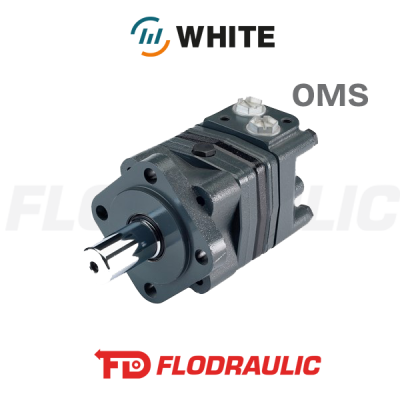

151F0505 - OMS 250 ORBITAL MOTOR - WHITE DRIVE MOTORS
The OMS is a high-performance medium hydraulic motor designed for maximum efficiency, durability, and reliability. With best-in-class leakage prevention and extended lifespan, it delivers consistent power and torque for demanding applications.
Orders received by September 30, 2026, with delivery from December 1, 2026 onward: theprice list will be subject to a +2.5% adjustment. *orbital motors are excluded
Description:
The OMS Medium Hydraulic Motor is built for those who demand exceptional power, longevity, and efficiency in high-performance applications.
Displacement: 80 – 500 cm³
Max Continuous Pressure: 210 bar
Max Continuous Torque: 865 Nm
Port Options: Side port, End port
Mounting Options: A2, Square, Short, Ultra short, Wheel mount
151F0505
- Mounting Flange
- 4 Bolt - Square
- Shaft Style
- Straight
- Shaft Size
- Dia. 32mm - M8 tap
- Shaft Key
- A10 x 8 x 45 mm
- Port Style
- Side ported - offset manifold (2 x M10)
- Port Dimension
- G 1/2
- Drain Port Style
- Standard - Motor flange
- Drain Port Dimension
- G 1/4
- Painted
- None
- Geometric Displacement
- 250,0 [15.26]
- Max Inlet Pressure Cont
- 230 [3340]
- Max Inlet Pressure Int
- 295 [4280]
- Max Inlet Pressure Peak
- 300 [4350]
- Seal Kit
- 151F0111
