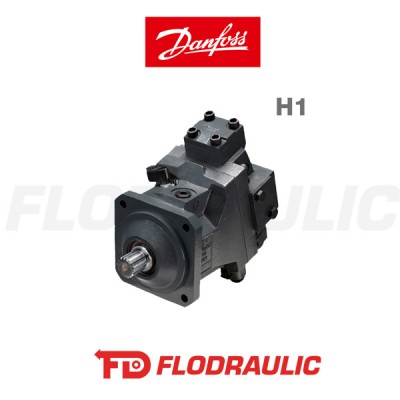

83095549 - MOTORE A PISTONI ASSIALI CON CILINDRATA VARIABILE H1B080 - DANFOSS

Model code: H1-B-080-A-A-F2-EA-N-B-TB-VN-CN-N-N-NN-NN-035-Z-00-NNN

Per completare il tuo acquisto Registrati

Characteristic
Value
Description
Series H1
H1 - Series
Product type B
Bent-axis variable motor
Frame Size 080
Displacement 80 cc/rev at maximum angle
Revision A
Product version A of H1B series
Configuration of ports A
Port configuration: inch according to ISO 11926-1
Control F2
Electric 2 position 24V, Deutsch DT 04-2P connector, de-energized = minimum displacement, no pressure compensator override
Pressure compensator override and brake pressure defeat EA
Without pressure compensator override and without brake pressure defeat, use with “F*” controls
Threshold setting N
Not applicable
Orifices B
0.8mm diameter orifices M4 and M5
Endcap type and ports TB
Endcap for 2 position and pressure compensator controls, side ports ISO 6162 Type 1 (metric), use with “E*”, “F*”, “T*”, “P*” and“H*” controls
Flange and housing VN
SAE-flange motor housing (ISO 3019 / 1), no speed sensor port
Shaft and speed ring CN
23 tooth 16/32 pitch ANSI 92.1 1970 class 5, no speed ring
Sensor N
No speed sensor
Loop flushing shuttle system N
No loop flushing function
Loop flushing relief valve NN
No loop flushing function
Special hardware features NN
Standard hardware feature 2 position standard
Minimum displacement 035
035 cc/rev minimum displacement setting
Maximum displacement Z
100% maximum displacement, non adjustable, use with "E*", "F*", "T*","P*" & "H*"
Pressure compensator override setting 00
No pressure compensator override function, use with “L*”, “M*”, “E*”, “F*” and “H*” controls
Paint and nametag NNN
Danfoss nametag
83095549
Danfoss
